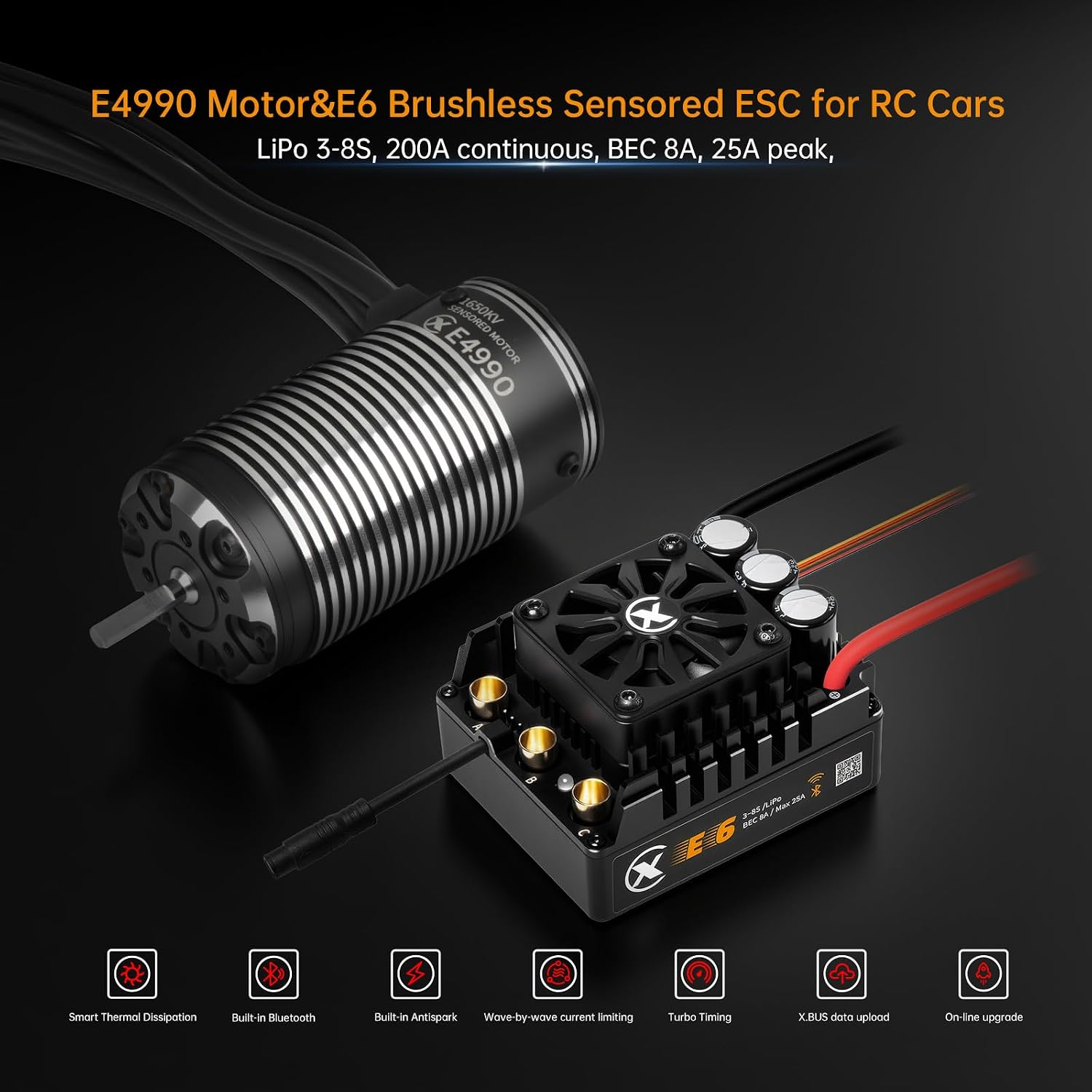

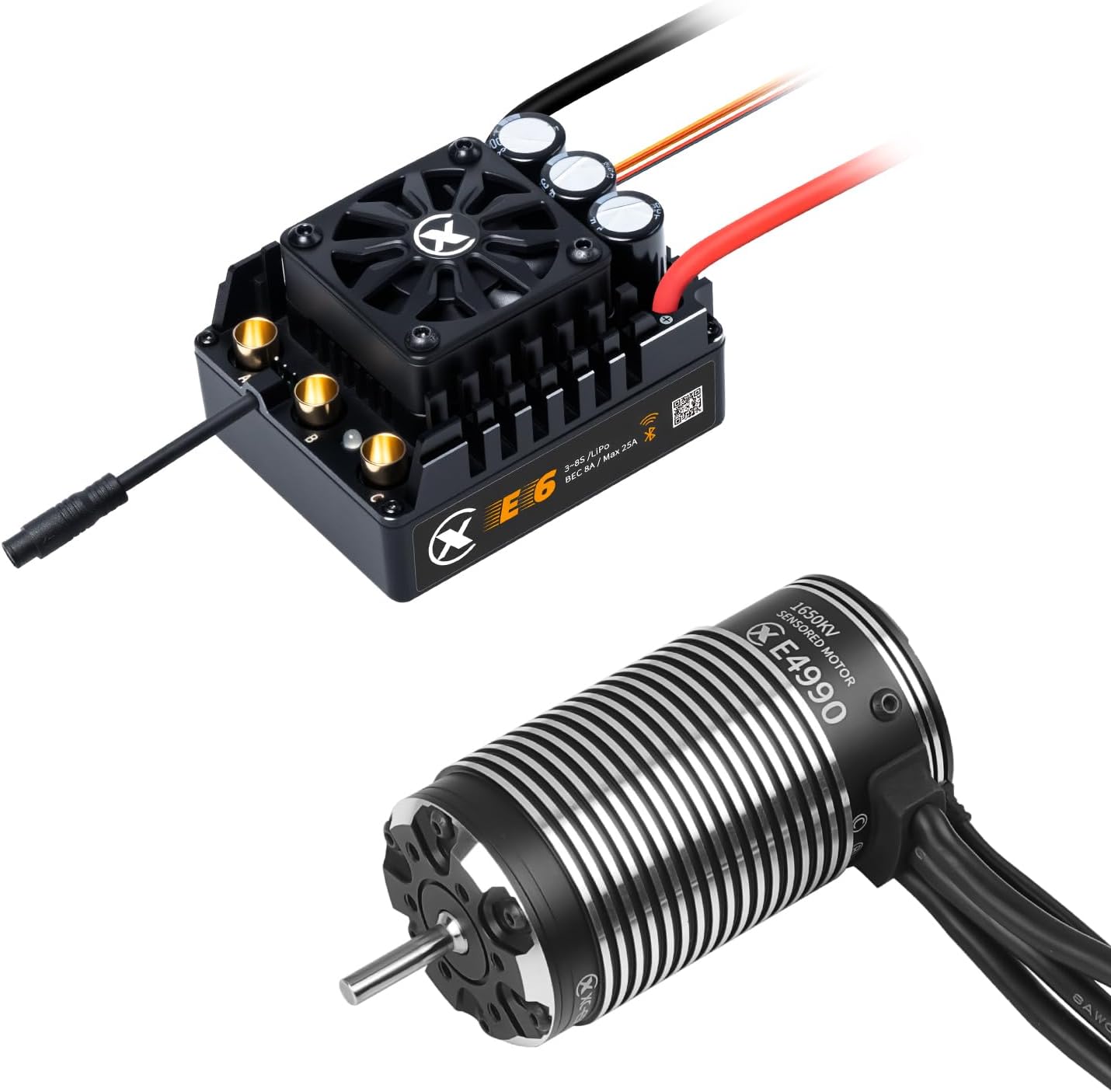

XC E4990 Motor & E6 Sensored Brushless ESC Combo for RC Car,3-8S Lipo,200A Continuous Current,Supprot APP Control,Applicable to:1/6 On-Road,Off-Road,Short Course,1/7 Monster(Heavy Load)
$259.99
Price: $259.99
(as of Aug 03, 2026 07:24:42 UTC – Details)
Product description
E4990 Motor & E6 ESC Combo
Motor KV 1650KV Lipos Motor 3-8S,ESC 3-8S Outer Diameter/Length Ø49mm(1.929in)/L90mm(3.543in) Shaft Diameter/End Length Ø5mm(0.2in)/L21.5mm(0.846in) Bearing Specification(front) D19*d8*T6 Bearing Specification(rear) D19*d8*T6 Motor Power Line Ø6.5mm ESC Continuous Current 200A BEC 8A~25A Max,6.0V/7.4V/8.4V ESC Power/Motor Lines 10AWG/6.5mm (plug) Turbo Timing 0-26°
ESC&Motor Combo
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars 12
—
—
4.8 out of 5 stars 8
—
—
—
Price
$259.99$259.99
$219.99$219.99
—
$159.99$159.99
$139.99$139.99
—
—
Motor KV
1650KV
2250KV
1250KV
3300KV
2800KV/2100KV/1400KV
560KV
560KV
Lipos
Motor 3-8S,ESC 3-8S
Motor 3-6S,ESC 3-6S
Motor 3-8S,ESC 3-8S
motor 2-3S,ESC 2-4S
motor 2-4S,ESC 2-4S
Motor 6-12S,ESC 6-12S
Motor 6-12S,ESC 6-12S
Outer Diameter/Length
Ø49mm(1.929in)/L90mm(3.543in)
Ø42mm(1.654in//L78mm(3.071in)
Ø56mm(2.205in)/L90mm(3.543in)
Ø36mm(1.41in/L62.6mm(2.465in)
Ø36mm(1.41in/L57.6mm(2.267in)
Ø70mm(2.760in)/L125mm(4.921in)
Ø70mm(2.760in)/L125mm(4.921in)
Shaft Diameter/End Length
Ø5mm(0.2in)/L21.5mm(0.846in)
Ø5mm(0.197in)L18.5mm(0.728in)
Ø8mm(0.315in)/L30mm(1.181in)
Ø5mm(0.197in)L16mm(0.63in)
Ø3.175mm(0.125in)L16mm(0.63in)
Ø8mm(0.315in)/L30mm(1.181in)
Ø8mm(0.315in)/L30mm(1.181in)
Bearing Specification(front)
D19*d8*T6
D17*d6*T6
D22*d8*T7
D13*d5*T4 Front end
D13*d5*T4 Front end
D22*d8*T7
D22*d8*T7
Bearing Specification(rear)
D19*d8*T6
D11*d5*T5
D19*d8*T6
D15*d6*T5
D15*d6*T5
D22*d8*T7
D22*d8*T7
Motor Power Line
Ø6.5mm
Ø6.5mm
Ø8.0mm
Ø4.0mm
Ø4.0mm
Ø8.0mm
Ø8.0mm
ESC Continuous Current
200A
160A
550A
80A
80A
300A
400A
BEC
8A~25A Max,6.0V/7.4V/8.4V
6A~15A Max,6.0V/7.4V/8.4V
8A~25A Max,6.0V/7.4V/8.4V
6A~13A Max,6.0V/7.4V
6A~13A Max,6.0V/7.4V
10A~25A Max,6.0V/7.4V/8.4V
10A~25A Max,6.0V/7.4V/8.4V
ESC Power/Motor Lines
10AWG/6.5mm (plug)
10AWG/6.5mm (plug)
7AWG/8.0mm (plug)
12AWG/4.0mm (plug)
12AWG/4.0mm (plug)
8AWG/8.0mm (plug)
7AWG/8.0mm (plug)
Turbo Timing
0-26°
0-26°
0-26°
0-24°
0-24°
0-26°
0-26°
FOC
✘
✘
✔
✔
✔
✘
✘
What type of RC vehicles is this combo recommended for?
1/7 On-Road,Off-Road,Short Course,1/8 Monster(Heavy Load)
Will this ESC overheat?
It has an intelligent cooling system, and there will be no cooling problems when used under normal usage environment and parameters
Is it suitable for outdoor use?
Of course, it has IP67-rated water and dust resistance, making it suitable for outdoor use
How do I adjust and monitor ESC parameter data?
You can search for ” XC-Link ” in the app store and download the APP to control the ESC
E-Series ESC App Download
Search for ” XC-Link ” in the app store, as shown in the image
Professional RC car power system and drone ESC manufacturer
To view more items, please visit our store!
For more information, you can download the user manual on the page or contact the Amazon store service
User Manual download address:
E4990: drive DOT google DOT com/uc?export=download&id=1Qd4Bn2Ido_vmV6EaVEX_nEgWDMKSGSlw
【Attention】If the combo set is out of stock, you can purchase the E6 ESC and E4990 motor separately from our store and contact Amazon customer service to refund the price difference

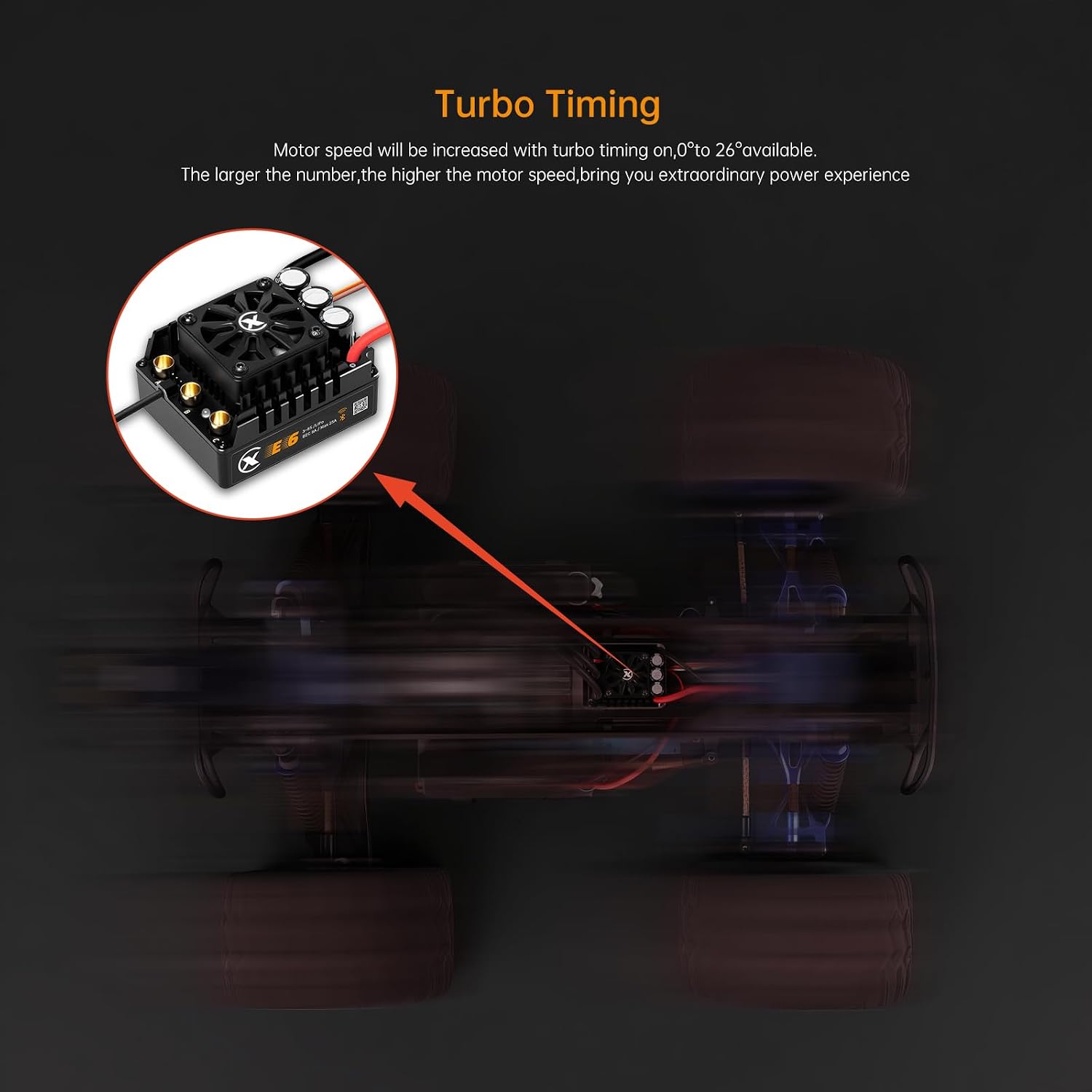

【High Power ESC】Supports 3-8S LiPo batteries,200A continuous current.Adjustable BEC output (6V/7.4/8.4V),current up to 25A.Turbo timing adjustable is available from 0°to 26°
【Intelligent Cooling System】Fan will be turned On/Off by ESC according to temperature of ESC.Improving battery service life and reducing noise
【Higher RPM,Lower Resistance】The rear end of large bearings combines small precision iron cover bearings for stronger carrying-capacity, higher RPM, lower resistance and more stable operation

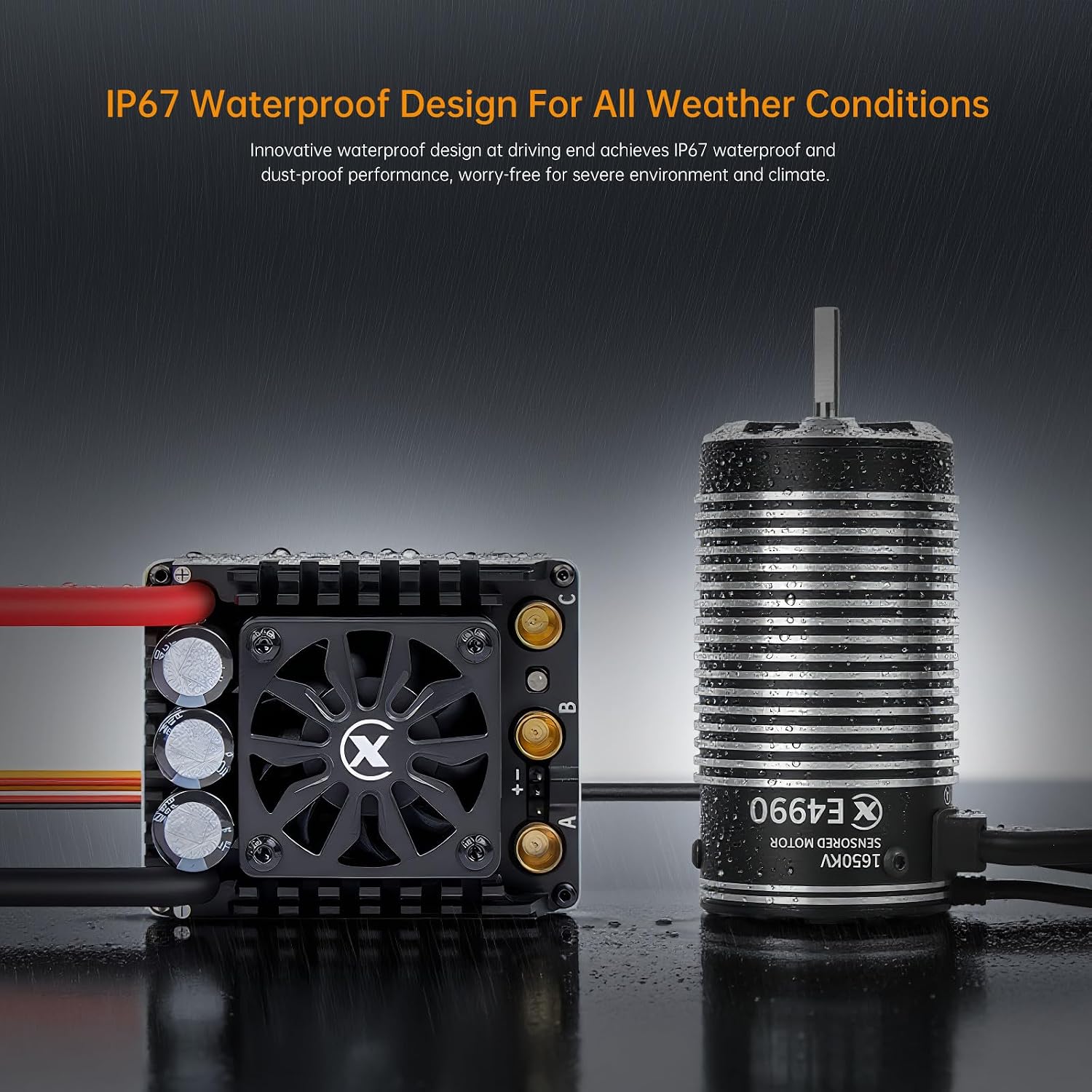

【Dual IP67 Waterproof And Dust-proof】 Innovative waterproof design at driving end achieves excellent waterproof and dust-proof performance
【Intelligent Control and Monitoring】With Mobile App( XC-Link ),data log can be downloaded for replay,to improve the configuration according to the performance data.Real-time data can be viewed on Mobile App,like voltage,current,temperature,RPM etc

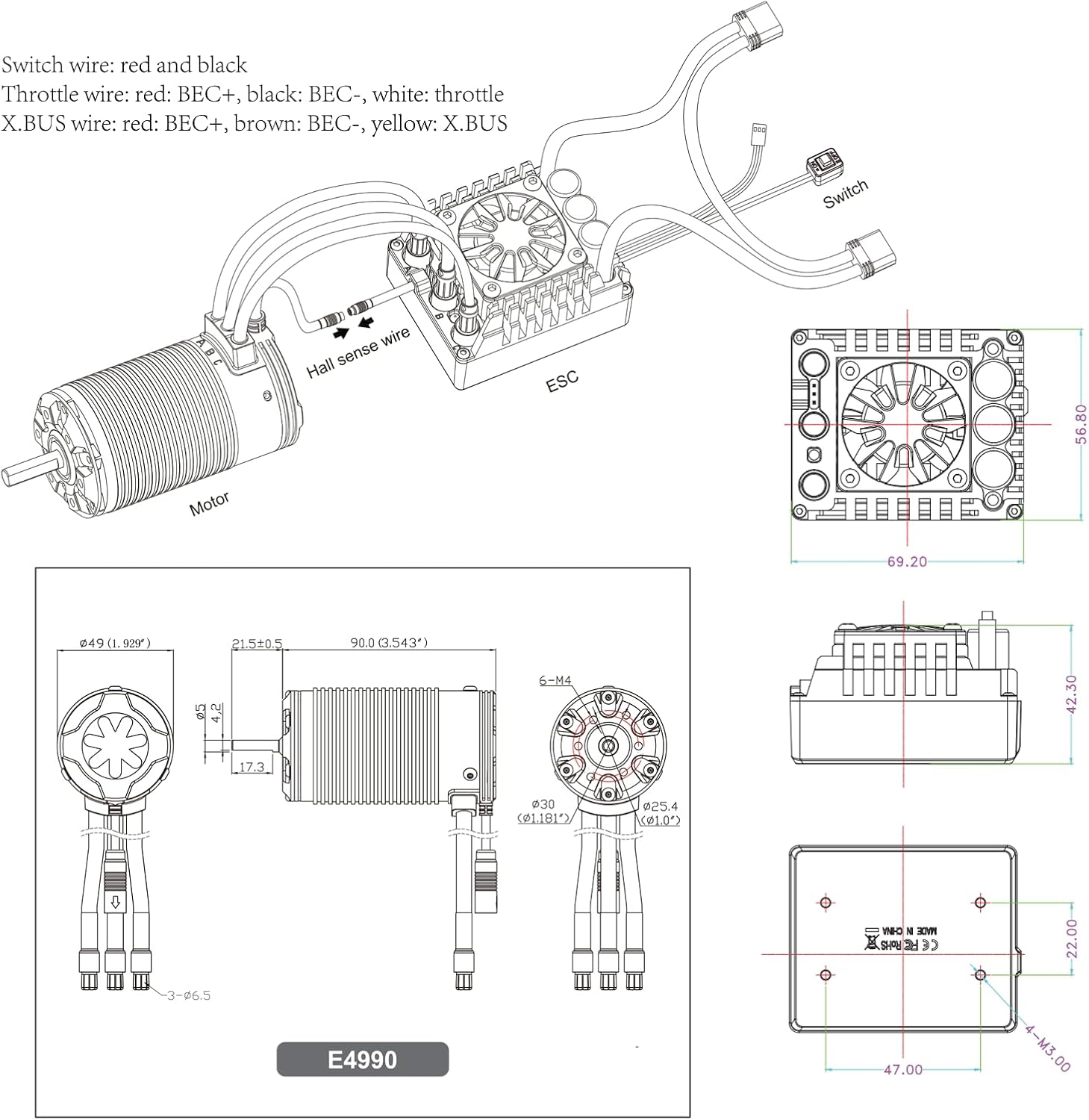

【Specifications】ESC Dimensions: 69.2*56.8*42.3mm/ 2.72*2.24*1.67 in, Weight:216g/7.62oz, Interface: No power connector (Requires soldering),Please confirm fitment and soldering capability before ordering
