XC E3665 & E10 Sensored Brushless Motor and ESC Combo for RC Car,2-4S Lipo,IP67 Water Proof,Applicable to: 1/10 Short Course,Trucks,Monster (2500KV+E10 XT60)
$133.99
Price: $133.99
(as of Aug 02, 2026 17:30:44 UTC – Details)
Product description

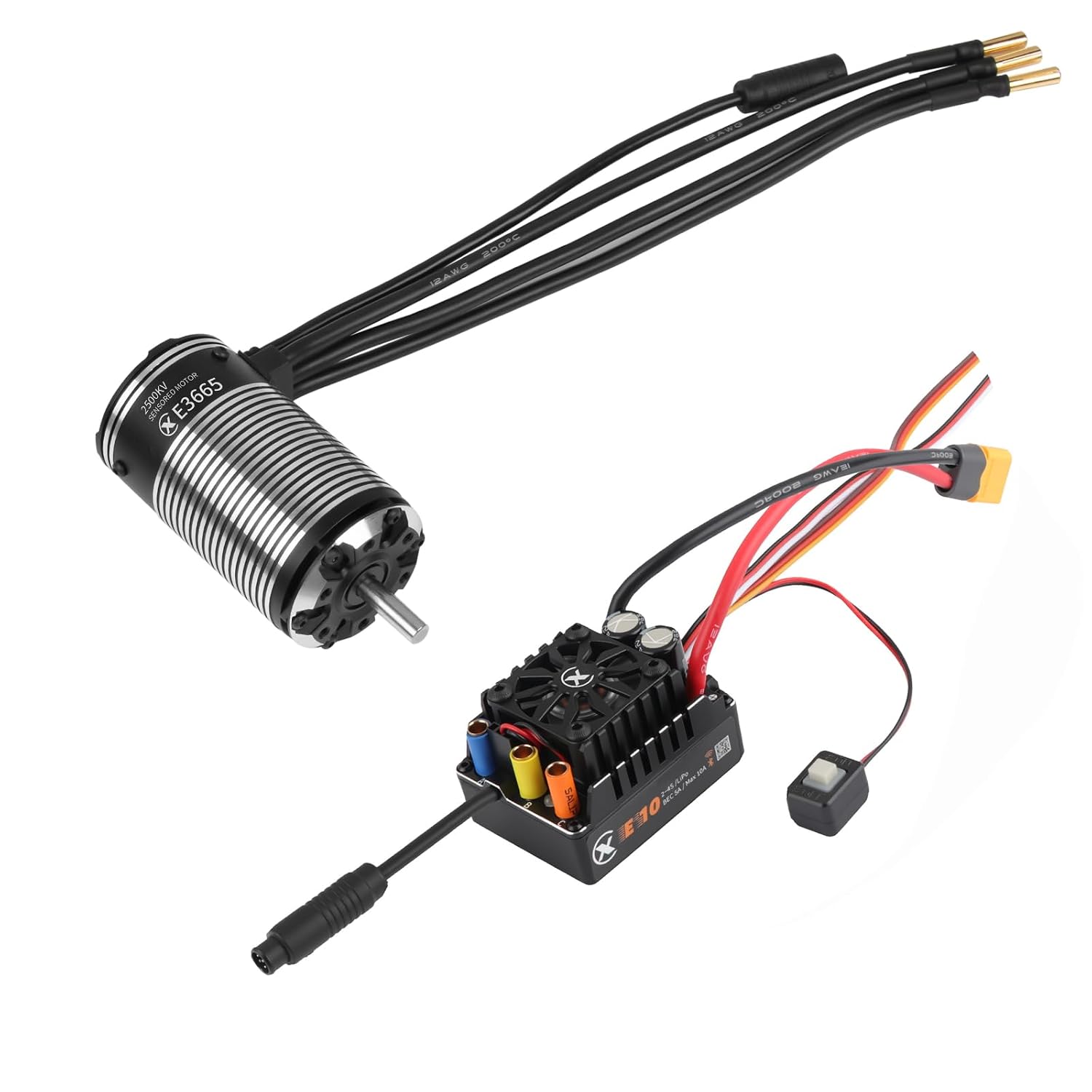

E3665 Motor & E10 ESC Combo
Motor KV 3300KV / 2500KV Lipos Motor 2-3S/2-4S,ESC 2-4S Outer Diameter/Length Ø37mm(1.46in)/L65.6mm(2.58in) Shaft Diameter/End Length Ø5mm(0.2in)/L16.5mm(0.65in) Bearing Specification D13*d5*T4 Front end Bearing Specification D11*d5*T5 Rear end (Terminal) Motor Power Line Ø4.0mm ESC Continuous Current 140A BEC 5A~10A Max,6.0V/7.4/8.4V ESC Power/Motor Lines 12AWG/4.0mm (plug) Turbo Timing 0-26° Protection low voltage, over voltage, throtle loss, abnormal braking, over temperature etc.
ESC&Motor Combo
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.8 out of 5 stars 29
4.9 out of 5 stars 17
—
4.8 out of 5 stars 8
—
—
4.5 out of 5 stars 12
Price
—
—
$139.99$139.99
$159.99$159.99
$219.99$219.99
—
$259.99$259.99
Motor KV
3300KV / 2500KV
5400KV / 4100KV / 3300KV
2800KV/2100KV/1400KV
3300KV
2250KV
560KV
1650KV
Lipos
Motor 2-3S/2-4S,ESC 2-4S
motor 2S/2-3S/2-3S,ESC 2-4S
motor 2-4S,ESC 2-4S
motor 2-3S,ESC 2-4S
Motor 3-6S,ESC 3-6S
Motor 6-12S,ESC 6-12S
Motor 3-8S,ESC 3-8S
Outer Diameter/Length
Ø37mm(1.46in)/L65.6mm(2.58in)
Ø37mm(1.46in)/L53mm(2.09in)
Ø36mm(1.41in/L57.6mm(2.267in)
Ø36mm(1.41in/L62.6mm(2.465in)
Ø42mm(1.654in//L78mm(3.071in)
Ø70mm(2.760in)/L125mm(4.921in)
Ø49mm(1.929in)/L90mm(3.543in)
Shaft Diameter/End Length
Ø5mm(0.2in)/L16.5mm(0.65in)
Ø3.17mm(0.125in)/L15mm(0.59in)
Ø3.175mm(0.125in)L16mm(0.63in)
Ø5mm(0.197in)L16mm(0.63in)
Ø5mm(0.197in)L18.5mm(0.728in)
Ø8mm(0.315in)/L30mm(1.181in)
Ø5mm(0.2in)/L21.5mm(0.846in)
Bearing Specification
D13*d5*T4 Front end
D13*d5*T4 Front end
D13*d5*T4 Front end
D13*d5*T4 Front end
D17*d6*T6
D22*d8*T7
D19*d8*T6
Bearing Specification
D11*d5*T5 Rear end (Terminal)
D11*d5*T5 Rear end (Terminal)
D15*d6*T5
D15*d6*T5
D11*d5*T5
D22*d8*T7
D19*d8*T6
Motor Power Line
Ø4.0mm
Ø4.0mm
Ø4.0mm
Ø4.0mm
Ø6.5mm
Ø8.0mm
Ø6.5mm
ESC Continuous Current
140A
140A
80A
80A
160A
300A
200A
BEC
5A~10A Max,6.0V/7.4/8.4V
5A~10A Max,6.0V/7.4/8.4V
6A~13A Max,6.0V/7.4V
6A~13A Max,6.0V/7.4V
6A~15A Max,6.0V/7.4V/8.4V
10A~25A Max,6.0V/7.4V/8.4V
8A~25A Max,6.0V/7.4V/8.4V
ESC Power/Motor Lines
12AWG/4.0mm (plug)
12AWG/4.0mm (plug)
12AWG/4.0mm (plug)
12AWG/4.0mm (plug)
10AWG/6.5mm (plug)
8AWG/8.0mm (plug)
10AWG/6.5mm (plug)
Turbo Timing
0-26°
0-26°
0-24°
0-24°
0-26°
0-26°
0-26°
FOC
✘
✘
✔
✔
✘
✘
✘
What type of RC vehicles is this combo recommended for?
Recommended models: 1/10 short course,truck,monster
Is it suitable for outdoor use?
Of course, it has IP67-rated water and dust resistance, making it suitable for outdoor use
How do I adjust and monitor ESC parameter data?
You can search for ” XC-Link ” in the app store and download the APP to control the ESC
E-Series ESC App Download
Search for ” XC-Link ” in the app store, as shown in the image
Professional RC car power system and drone ESC manufacturer
To view more items, please visit our store!
For more information, you can download the user manual on the page or contact the Amazon store service
User Manual download address:
E3665: drive dot google dot com/uc?export=download&id=1vMcmkZrtwstyjbYzz4TqPc3KdfVmy101
【Attention】For any usage inquiries or potential business cooperation, please contact our store’s customer service directly.If the combo set is out of stock, you can purchase the E10 ESC and E3665 motor separately
【High Power ESC】Supports 2-4S LiPo batteries,Adjustable BEC output (6V/7.4/8.4V),current up to 10A.The ESC supports 140A continuous current and a maximum instantaneous current of 280A,Turbo timing adjustable is available from 0°to 26°
【Intelligent Cooling System】Fan will be turned On/Off by ESC according to temperature of ESC.Improving battery service life and reducing noise

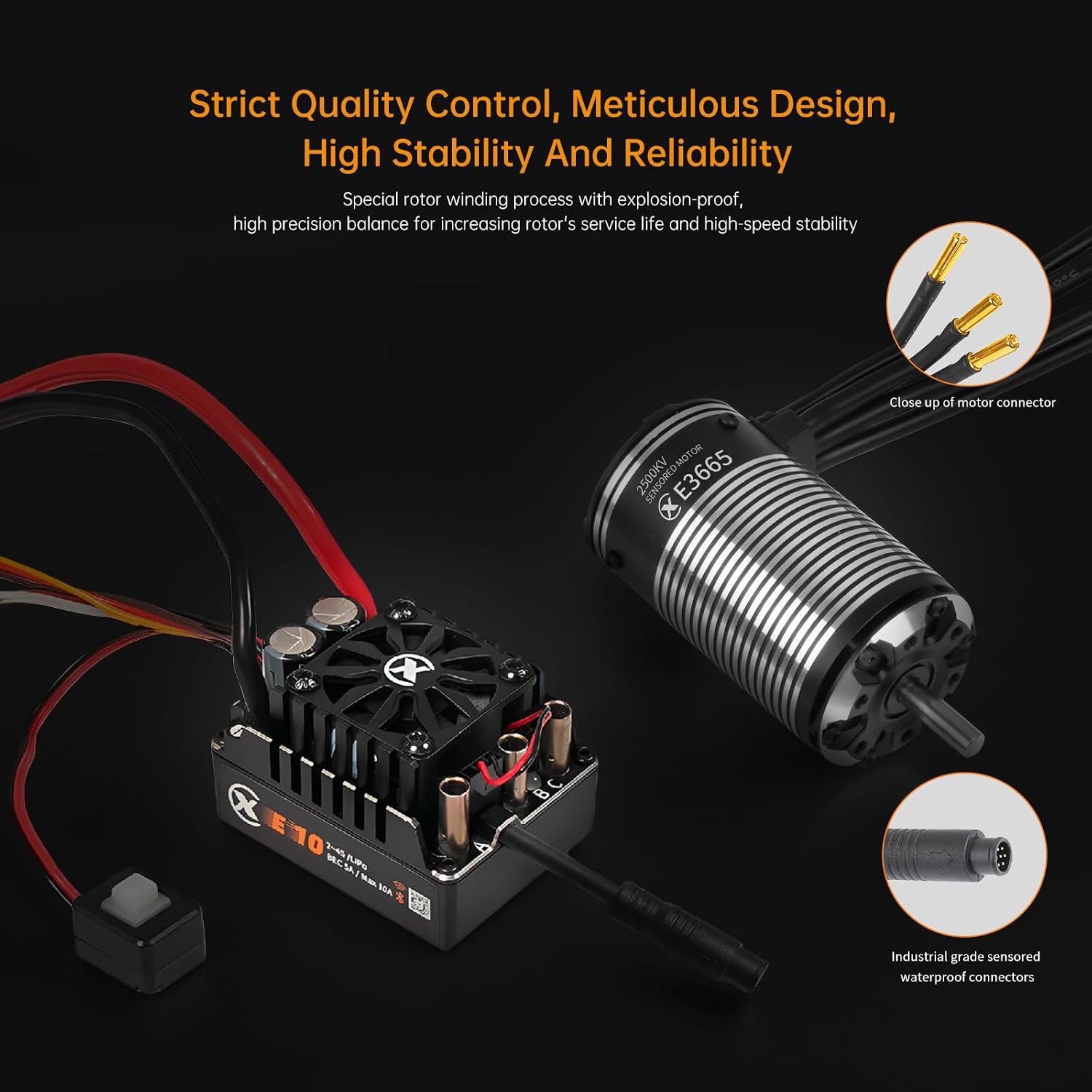

【Higher RPM,Lower Resistance】The rear end of large bearings combines small precision iron cover bearings for stronger carrying-capacity, higher RPM, lower resistance and more stable operation

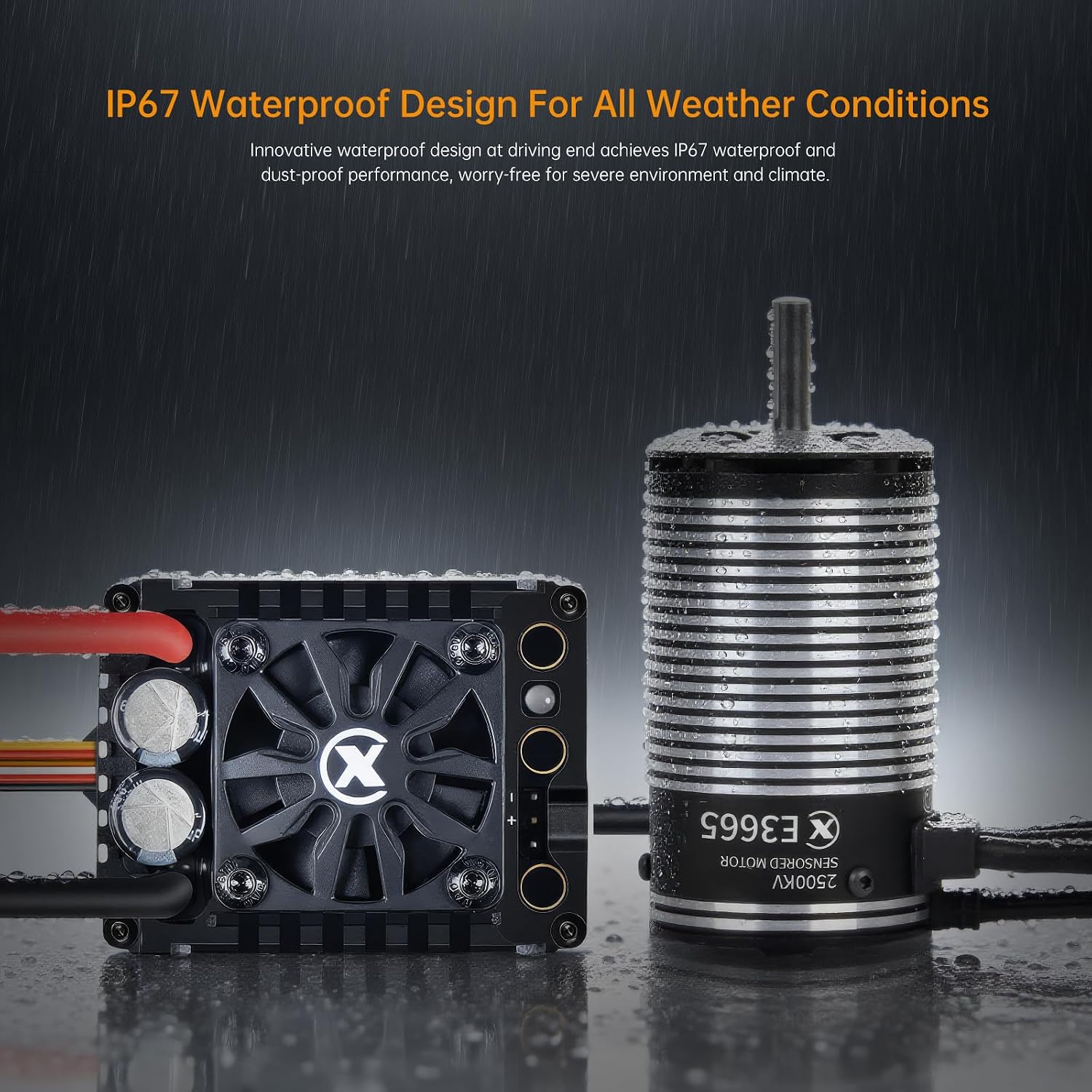

【Dual IP67 Waterproof And Dust-proof】 Innovative waterproof design at driving end achieves excellent waterproof and dust-proof performance
【Intelligent Control and Monitoring】With Mobile App( XC-Link ),data log can be downloaded for replay,to improve the configuration according to the performance data.Real-time data can be viewed on Mobile App,like voltage,current,temperature,RPM etc
